Steel Wire Rope

Details for Steel Wire Ropes

Asahi Ropes is known for manufacturing one of the widest range of wire rope products in the country. Our rope application spread all over the city is a testimony of its high-quality products and services. The ropes manufactured by Asahi Ropes are today serving some of the most critical applications across diversified industrial segments. These wire rope products have promptly delighted its users for its high quality and long life. Some of the wire rope manufactured by Asahi Ropes include-Oil & off-shore Ropes, Fishing, Crane, Mining, Elevator, Arial & General Engineering Ropes and other varieties of ropes.

Applications

Wire rope manufacturers produce their products in order to provide a high load capacity, versatile alternative to weaker ropes like manila rope or hemp rope. Wire rope products are used for a wide variety of motion transmission applications, among them: lifting, baling, tie down, hoisting, hauling, towing, mooring, anchoring, rigging, cargo control, guidance, and counterbalance. They can also be used as railing, fencing, and guard railing. Wire rope is a must-have for many heavy duty industrial applications. From mining to forestry to marine and beyond, there’s wire rope for almost every job. Some of the many industries in which wire rope is popular include: construction, agriculture, marine, industrial manufacturing, fitness, sports, and recreation (plastic coated cables for outdoor playground equipment and sports equipment), electronics, theater (black powder coated cables for stage rigging), mining, gas and oil, transportation, security, healthcare, and consumer goods.

Most Common Usage:

  •  Construction and Offshore rigging
  •  Marine Industry and Ministry of Defence divisions
  • elevator, crane lifting, hanging basket, colliery steel, seaport, and oilfield.

Specifications

Wire rope is made of plaiting strands of wire – normally medium carbon steel – into a thick cable. The strands are formed around a core. The strands in wire ropes are made of wore twisted together. Strands with smaller diameter wires are less abrasion resistant and more fatigue resistant. Strands made with thicker length of wore are more abrasion resistant and less fatigue resistant.

  • 1. Sizes : From 3mm to 52 mm
  • 2. Material of Steel Wire Rope : Galvanized and ungalvanized or stainless steel, etc
  • 3. Core : FC, SC, IWRC, PP
  • 4. Tensile Strengths : 1370, 1570, 1770, 1960, 2160 N/mm2.
  • 5. Wire Rope range:
    • 6×7, 7×7, 6×19 , 7×19
    • 6x17S, 6x19S, 6x21F, 6x19W, 6x25F, 6×37
    • 6x26WS, 6x31WS, 6x36WS, 6x41WS
    • 8x19S, 8x21F, 8x19W, 8x25F
    • 8x26WS, 8x31WS, 8x36WS
    • 17×7, 18×7, 19×7, 34×7, 35×7, 6×12, 6×24
    • 18x19S, 19x19S
    • 18x7K Compacted Strand, 19x7K Compacted Strand, 35x7K Compacted Strand

6X19 STEEL WIRE ROPE

This 6×19 steel wire rope construction is available with either FC (fibre core) or WSC (wire strand core). When supplied with a wsc the rope is more commonly referred to as 7×19 steel wire rope. The rope is very popular in diameters from 3mm to 16mm and is used on a variety of applications. 6×19 steel wire rope FC (fibre core) and 6×19 steel wire rope WSC (wire strand core) (7×19) is very flexible in diameters 3mm to 6mm and is used for many applications where wire ropes are running over pulleys. 7×19 construction is readily available supply in both galvanised wire ropes and marine grade stainless steel wire ropes.

Hemp Core wire ropes

This hemp wire rope is described as a Seale Patent rope and its design was based on Thomas Seal’s 1885 patent “Wire Rope or Cable” (U.S. Patent No. 315,077).  These were used in high speed elevators that made for quick acceleration combined with smoothness of operation and safety. Some say they make a noise known as elevator singing

The hemp wire rope cable is made of 8 strands, 19 wires to a strand, all of which are wrapped around a hemp core. It was known as the company’s “Extra Flexible Traction Steel Elevator Hoisting Wire Rope”

Steel wire rope

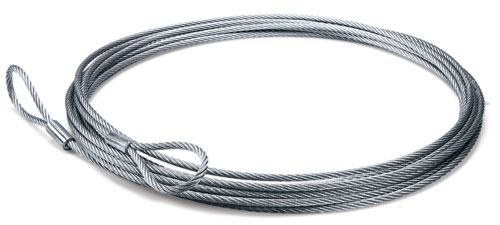

Steel Wire Ropes
